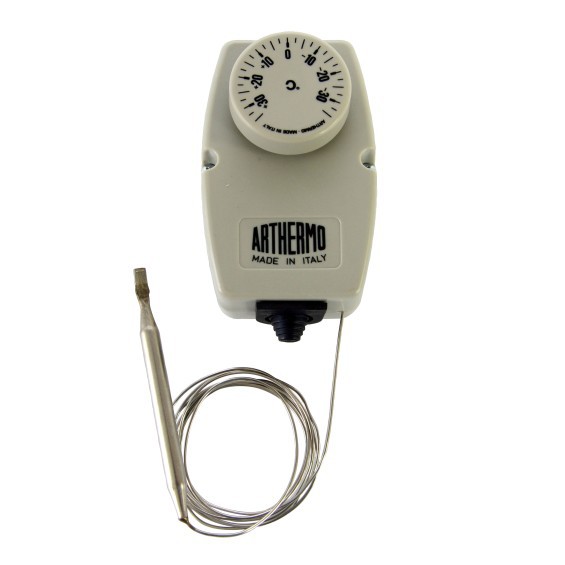

Boxed thermostats 'Classic line'



Encased adjustable thermostat, single pole, liquid filled sensing bulb and bellows operating, SPDT contacts. This thermostat is suitable for automatic adjustment of aplliances in cooling field.


Switching capacity

C-1 15(2,5)A 400 VAC
C-2 2.5(0.4)A 400 VAC

Temperature Range : -35+35°C
Life of product 100.000 switching cicle
Minimum current 200 Ma without gold contact
Insulation resistance >100 Mohm
Max temp. around body T110°C
Max temp. around buld +15% switching value
Dielectric strenght AC 2000V 1 min
Connection faston 6.3x0.8
European approvals thermostat inside ENEC03
Degree of protection IP40
Cilck Here to see the drawing
