Boxed thermostats 'Classic line'

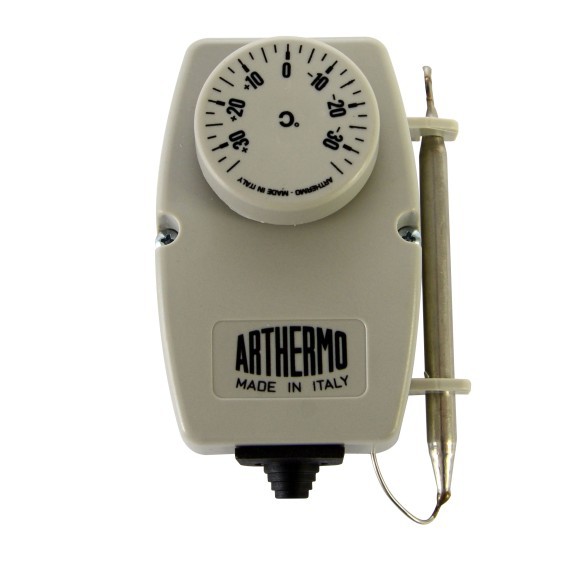

TSC-094C
Encased adjustable thermostat, single pole, liquid filled sensing bulb and bellows operating, SPDT contacts. This thermostat is suitable for automatic adjustment of aplliances in cooling field, degree protection IP54.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC |
| Temperature range: | -35+35°C |
| Life of product | 100.000 switching cicle |
| Minimum current | 200 Ma without gold contact |
| Insulation resistance | >100 Mohm |
| Max temp. around body | T110°C |
| Max temp. around buld | +15% switching value |
| Dielectric strenght | AC 2000V 1 min |
| Connection | faston 6.3x0.8 |
| European approvals | thermostat inside ENEC03 |
| Degree of protection | IP40 |
Click here to see the drawing
