Safety manual reset thermostats
TRM

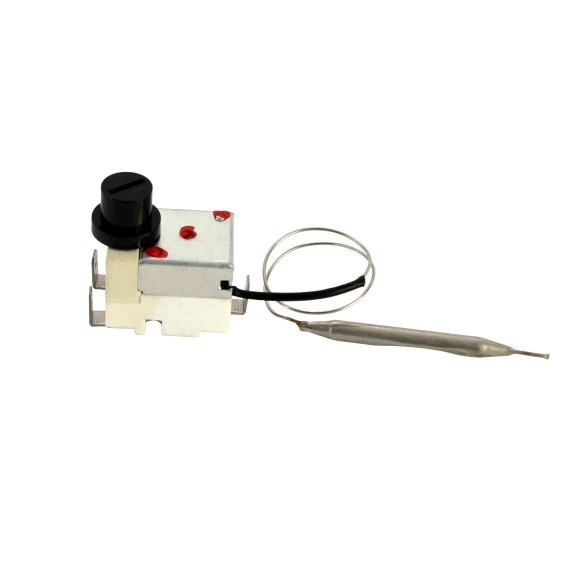

Single pole thermostat, liquid filled type, temperatur limiter with manual or automatic reset; positive cutoff safety in case of capillary breakage (on request).
Suitable for central heatings, boilers, heating appliances and for all the applications where a max safety temperature is not to be exceeded.
TRM-B automatic reset
TRM-C manual reset
TECHNICAL PARAMETERS
| Switching capacity |
C-1 16(3)A 400 VAC C-2 6(1)A 400 VAC |
| Life of product | 100.000 switching cicle |
| Minimum current | 200 Ma without gold contact |
| Insulation resistance | >100 Mohm |
| Max temp. around body | T90°C (T150°C if temp. >100°C) |
| Max temp. around buld | +15% switching value |
| Connections | SPDT or SPST |
| Connection | faston 6.3x0.8 |
| European approvals | VDE |
| Code | Range of temp | Ø bulb | Lenght of capillary | Differential °C |
| TRM-B | 100°C | 6 mm | 1500 mm | ± 5°C |
| TRM-C | 100°C | 6 mm | 1500 mm | ± 5°C |
