Adjustable thermostats
STC +50+315°C

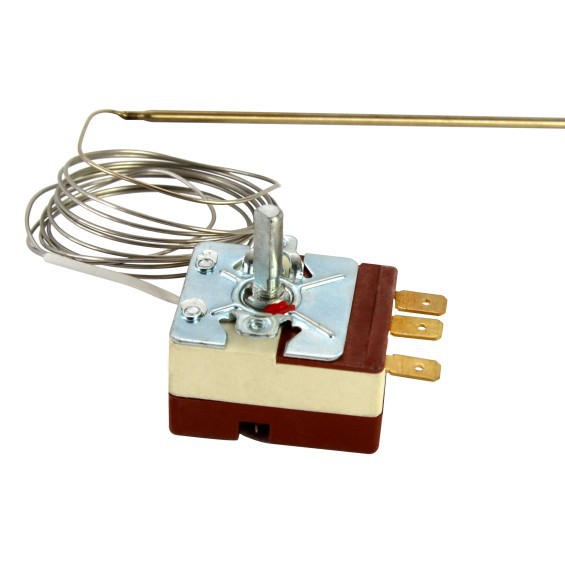

Single-pole thermostat with liquid fill sensing bulb, SPDT contatcs for the automatic adjustment in cooking equipments and high temperature appliances.
TECHNICAL DETAILS
| Adjustment range | 50/315°C |
| Capillary | mm 1500 inox |
| Switching capacity |
C-1 16(2,6)A 250 VAC |
| Life of product | 100.000 switching cycles |
| Max°C around body | T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1 min. |
| Connection | Faston 6,3 x 0,8 |
| Approval | VDE |
