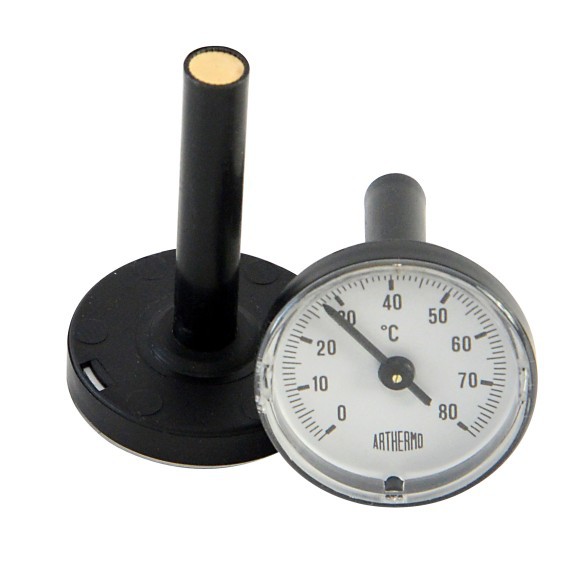

Resin bimetallic thermometer Ø40 mm, back stem Ø9 mm lenght mm 19/27/50, temperature range 0/60°C, withe dial black numbers, logo Arthermo.





Optional:

• Different of shank
• Girdle
• Spring clips
• Different color of displays and/or number
• Different temperature scale

Max temp tolerance casing	80°C
Shank diameter	Ø9 mm
Shank length	19, 27, 50 mm
Temperature range	0÷60°C, 0÷80°C, 0÷120°C
Casing material	Loaded resin
Frame	Chromed steel (on request)
Dial	White with black number
Transparent	Plastic

Click here to see the drawing
