Capillary thermometers
QP 03

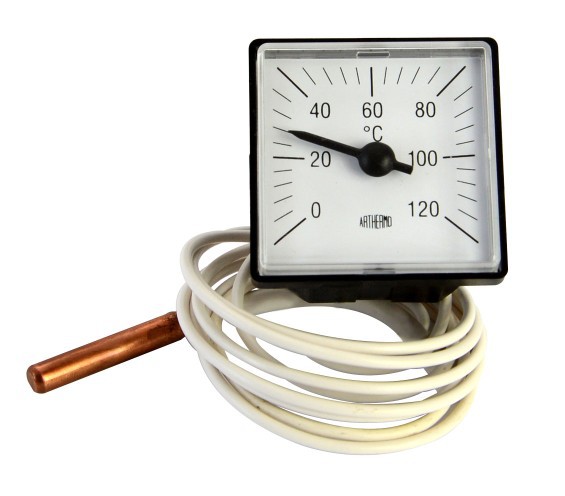

Telethermometer QP 03, square body 48x48 mm, black resin case, capillary mm 1500 Ø 2,4 mm PVC coated, white dial black numbers and Arthermo logo, free bulb Ø 6 mm.
Optional:
- Different length of capillary
- Different color of displays and/or number
- Different temperature range
- Bimetallic compensation
| Max temperature tolerance casing | 60°C |
| Brass or copper bulb | Ø6 mm |
| Copper capillary | 1500 mm coated in PVC |
| Case material | Black plastic |
| Frame | Black plastic |
| Fastener | Self-locking clips |
| Temperature range | -40+40°C; 0+120°C; +50+350°C |
| Dial | White with black numbers |
