Capillary thermometers
F87 R

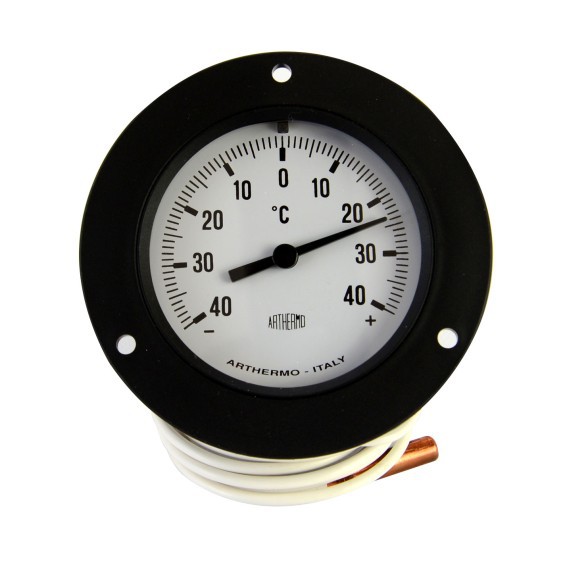

Telethermometer F87 R with reversible flange, black resin case and flange, capillary mm.1500 in copper coated with PVC 3,5 dia, white dial with black numbers and Arthermo logo, free bulb Ø 7,5 mm.
Optional:
- Different capillary lengths
- Bimetallic compensation
- Different size of bulb
- Different color of displays and/or number
- Threaded nipple
- Different temperature ranges
| Max temperature case tolerance | 60°C |
| Case diameters | Ø60, Ø80, Ø100 mm |
| Brass or copper bulb | Ø 7,5 mm |
| Capillary | 1500 mm in copper |
| Case material | Loaded black resin |
| Frame | Loaded black resin |
| Fastener | With screws |
| Temperature ranges | -40+40°C, 0+120°C; 50+350°C |
| Dial | White with black numbers |
