Capillary thermometers
F84 FP

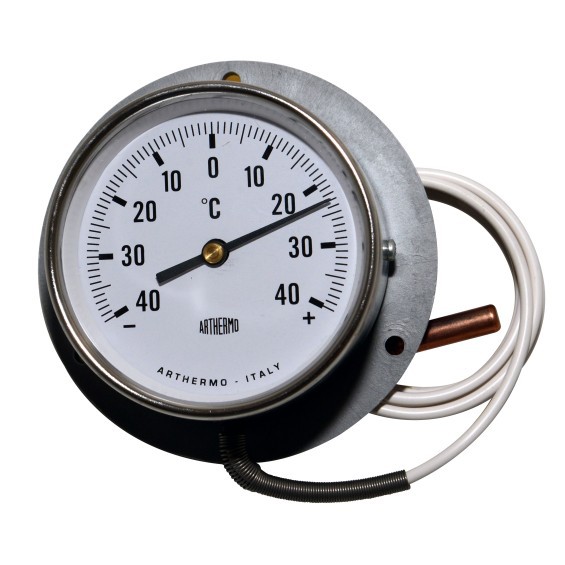

Telethermometer F84 FP for surface mounted application, grey moplen body, capillary mm.1500 Ø3,5 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb Ø6 mm.
Optional:
- Different capillary lengths
- Copper braid capillary for high temperatures
- Bimetallic compensation
- Different size of bulb
- Different colour of displays and/or number
- Threaded nipple
- Different temperature ranges
| Max temperature tolerance case | 60°C |
| Case diameters | Ø60, Ø80, Ø100 mm |
| Brass or copper bulb | Ø6 mm |
| Copper capillary | 1500mm coated in PVC |
| Case material | Loaded grey resin |
| Frame | Stainless steel |
| Fastener | With screws |
| Temperature ranges | -40+40°C; 0+120°C; 50+350°C |
| Dial | White with black numbers |
