Boxed thermostats 'Classic line' IP54

TSC-096/IP 54

TSC-096/IP 54

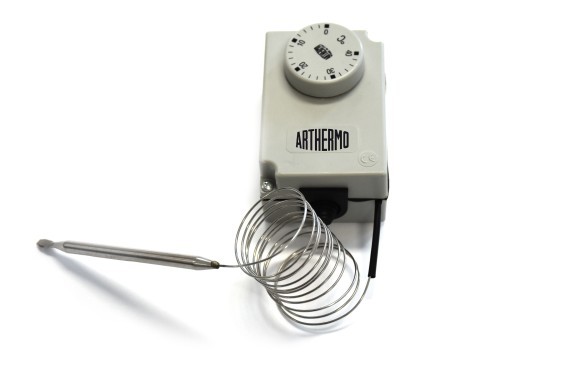

Encased adjustable thermostat 0/40°C with capillry mm 1500, particularly suitable for temperature control in air-conditioning sector, degree protection IP54.


Switching capacity

C-1 15(2,5)A 400 VAC
C-2 2,5(0,4)A 400 VAC

Temperature range 0/40°C
Life of product  100.000 switching cycles
Minimum current  200 mA without gold contact
Insulation resistant  > 100M ohm
Max°C around body  T110°C
Max°C around bulb  +15% switching value
Dielectric strenght  AC2000V 1 min
Connection   Faston 6,3 x 0,8
Approvals  ENEC03 thermostat inside
Degree of protection  IP54 - Approval by IMQ

Click here to see the drawing
