Capillary thermometers

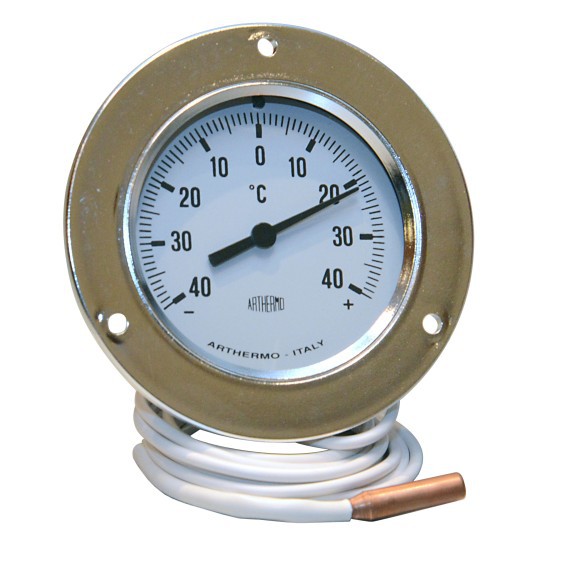

F87 R DELUXE
Telethermometer F87 R with reversible metallized flange, black resin body, capillary mm 1500 in copper coated with PVC Ø 3,5 mm, white dial with black numbers and Arthermo logo, free bulb Ø 7,5 mm.
Optional:
- Different capillary lengths
- Bimetallic compensation
- Different size of bulb
- Different color of displays and/or number
- Threaded nipple
- Different temperature ranges
| Max temperature case tolerance | 60°C |
| Case diameters | Ø60, Ø80, Ø100 mm |
| Brass or copper bulb | Ø 7,5 mm |
| Capillary | 1500mm in copper |
| Case material | Loaded black resin |
| Frame / Flanges | Loaded metallized resin |
| Fastener | With screws |
| Temperature ranges | -40+40°C; 0+120°C; 50+350°C |
| Dial | White with black numbers |
