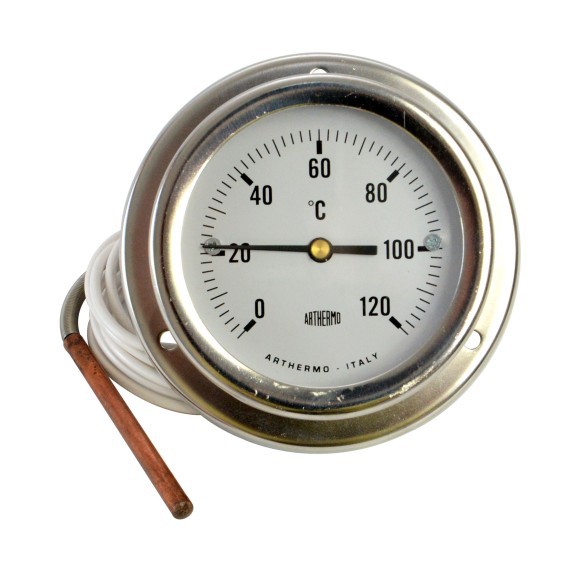

Telethermometer F84 FP for surface application, body and frame in stainless steel, IP55, capillary mm.1500 Ø3,5 mm PVC coated, white dial with black numbers and Arthermo logo, free bulb.

*Ø60 mm IP54



Optional:

• Different capillary lengths
• Copper braid capillary for high temperatures
• Bimetallic compensation
• Different size of bulb
• Different colour of displays and/or number
• Threaded nipple
• Different temperature ranges

Max temperature tolerance case	60°C
Case diameters	Ø60, Ø80, Ø100 mm
Brass or copper bulb	Ø6 mm
Copper capillary	1500mm coated in PVC
Case material	Stainless steel
Frame	Stainless steel
Fastener	With screws
Temperature ranges	-40+40°C; 0+120°C; 50+350°C
Dial	White with black numbers

Click here to see the dwg
