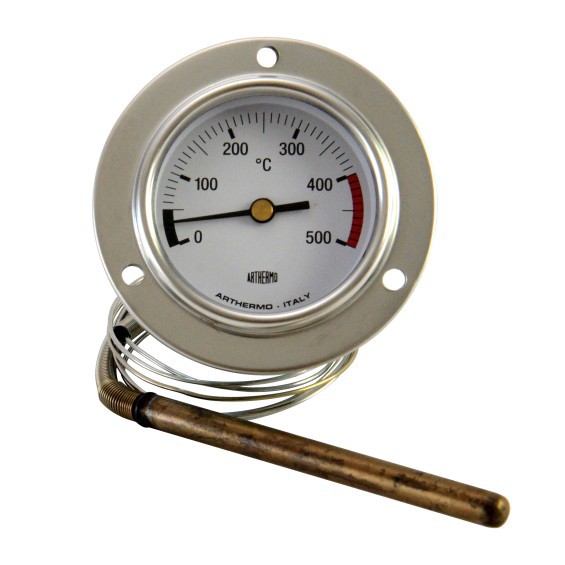

Round thermometer Ø 52/60 with capillary, 0/500°C, suitable for the temperature reading of ovens and stoves. Capillary in stainless steel and movement with gas expansion, fixing with inox frame with 3 holes.
Optional:

• Different capillary lenghts
• Different colour for a dial



Max temperature tolerance casing	80°C
Casing dimension	Ø52, Ø60
Bulb in stainless steel	Ø 8 mm
Capillary in isteinless steel	1000 mm
Case made in	white zinc plated steel
Frame	stainless steel
Fastening	Fixing with inox frame with 3 holes
Temperature range	0÷500 °C
Dial	white with black numbers

Click here to see the drawing
