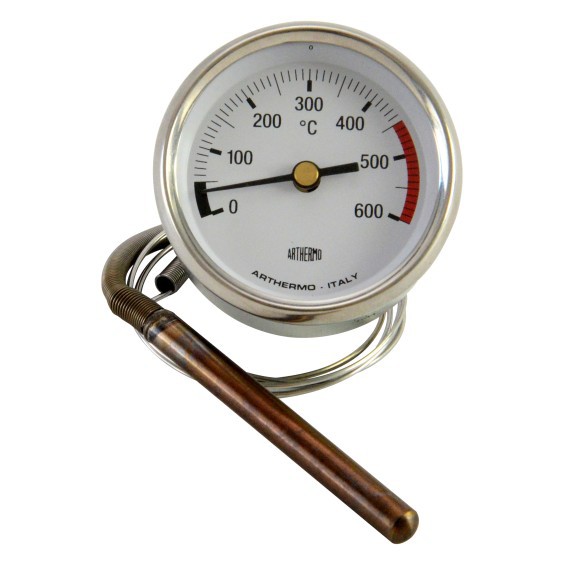

Capillary thermometer C 71, body Ø52/60/80 mm, zinc plated steel body, frame bright steel, capill. 1000 mm stainless steel, scale 0+500°C, white dial, black nmb., Arthermo logo, free bulb Ø8 mm
Optional:

• Different capillary lenght
• Different colours for a dial

Max temperature tolerance casing	80°C
Casing dimension	Ø52, Ø60
Bulb in stainless steel	Ø 8 mm
Capillary in isteinless steel	1000 mm
Case made in	white zinc plated steel
Frame	stainless steel
Fastening	bracket or front flange with 3 coupling holes
Temperature range	0÷600 °C
Dial	white with black numbers

Click here to see the drawing
