Fig. 569 metallic
Fig. 569 Ø 63

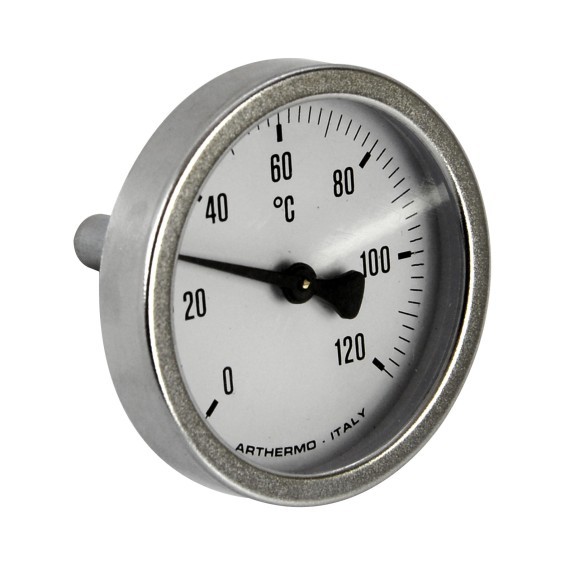

Bimetallic thermometer Fig. 569 Ø63 zinc plated steel body and chromed frame, back brass stem Ø9 mm, anodized dial with black numbers and Arthermo logo.
Optional:
- Different stem lengths
- Customized displays with different colours and/or number
- Threaded nipple
- Different temperature ranges
| Case max temperature tolerance | 150°C |
| Stem diameter | Ø9 mm |
| Stem lengths | 27 - 50 - 100 - 150 - 200 - 250 - 500 mm |
| Temperature ranges | 0+80°C; 0+120°C; 0+160°C; 0+250°C; 0+500°C |
| Case material | Zinc plated steel |
| Frame | Chromed steel |
| Dial | Anodized with black number |
| Case diameter | Ø63mm |
