Adjustable thermostats
ST -35+35°C

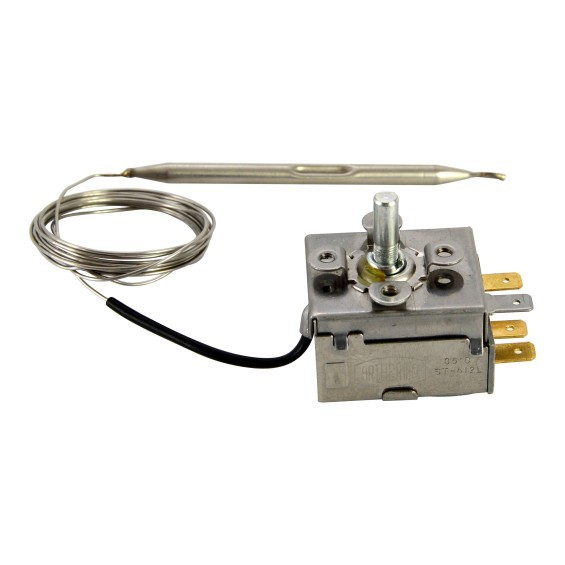

Single-pole thermostat, SPDT, mm 1500 inox steel capillary ,-35+35°C. Suitable for automatic adjustment of refrigeration system.
TECHNICAL DETAILS
| Adjustable range | -35+35°C |
| Capillary | Inox steel mm 1500 |
| Switching capacity |
C-1 2,5(0,4)A 400 VAC |
| Life of product | 100.000 switching cycles |
| Max°C around body | T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1min. |
| Connection | Faston 6,3 x 0,8 |
| Approvals | ENEC 03 |
