Adjustable thermostats
ST 0+90°C

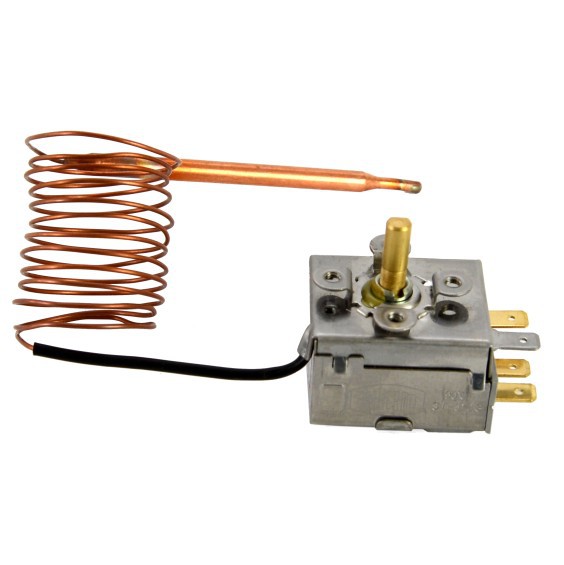

Single-pole thermostat SPDT, mm 1500 copper capillary, 0/90°C. Suitable for automatic adjustment of heating system.
TECHNICAL DETAILS
| Adjustable range | 0/90°C |
| Capillary | Copper mm 1500 |
| Switching capacity |
C-1 15(2,5)A 400VAC |
| Life of product | 100.000 switching cycles |
| Max°C around body | T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1 min |
| Connection | Faston 6,3 x 0,8 |
| Approvals | ENEC03 |
