Boxed thermostats 'Classic line'

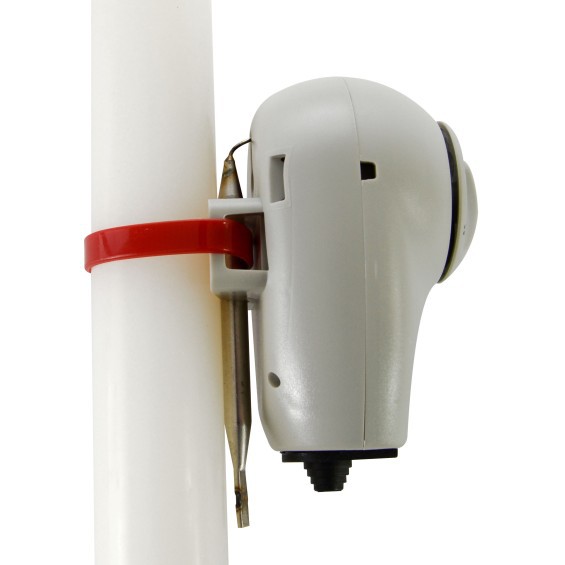

Encased thermostat 0/90°C fitted with heat resistant band tie for fixing; particularly suitable for temperature control on heating systems.Projected for direct application on pipes with diameter between 15 and 80 mm. Fixing through a heat-resistant band tie in nylon, included in the box.


Switching capacity

C-1 15(2,5)A 400 VAC
C-2 2,5(0,4)A 400 VAC

Life of product 100.000 cycles
Adjustable range 0/90°C
Insulation resistant >100Mohm
Max °C around body T110°C
Max °C around bulb +15% switching value
Dielectric strenght AC2000V 1min.
Connection Faston 6,3 x 0,8
Approvals ENEC03 thermostat inside
Degree of protection IP40
Click here to see the drawing
