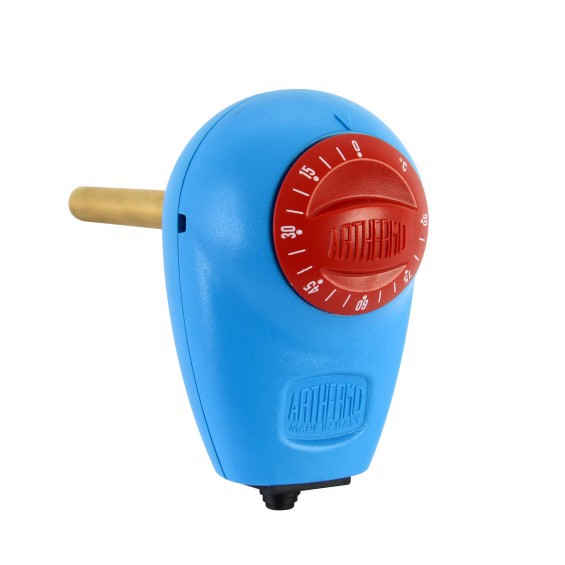

Boxed thermostats 'Arthermostat'
ARTH100
Immersion adjustable thermostat liquid filled operating , SPDT contacts , with waterproof protection pocket 1/2" X 100 mm. Suitable for automatic adjustment of heating system, burners and pumps.
THERMOSTAT TECHNICAL SPECIFICATIONS
| Switching capacity |
C-1 15(2,5)A 400 VAC C-2 2,5(0,4)A 400 VAC |
| Life of product | 100.000 switching cycles |
| Adjustable range °C | 0/90°C |
| Insulation resistant | >100Mohm |
| Max°C around body | T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strength | AC2000V 1 min. |
| Connection | Faston 6,3 X 0,8 |
| Approvals | ENEC 03 |
| Degree protection | IP40 |
