Boxed thermostats 'Classic line'
TSC-097C

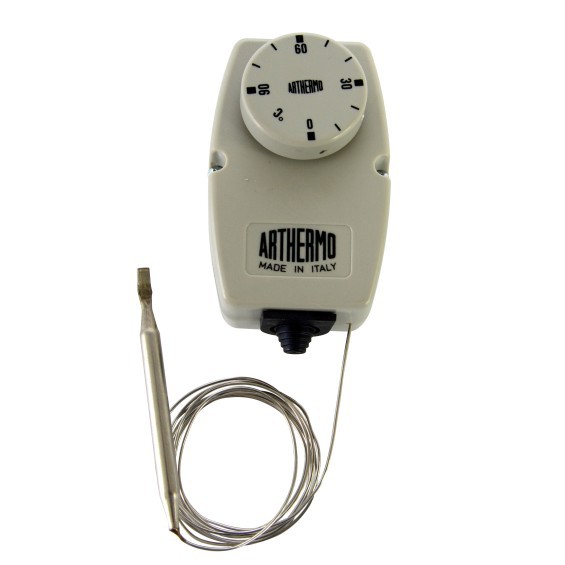

Encased adjustable thermostat 0/90°C with capillary mm 1500.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC C-2 2,5(0,4)A 400 VAC |
| Temperature range | 0/90°C |
| Life of product | 100.000 switching cycles |
| Minimum current | 200mA without gold contact |
| Insulation resistant | >100 Mohm |
| Max °C around body | T110°C |
| Max °C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1 min. |
| Connection | Faston 6,3 x 0,8 |
| Approvals | ENEC 03 thermostat inside |
| Degree protection | IP40 |
