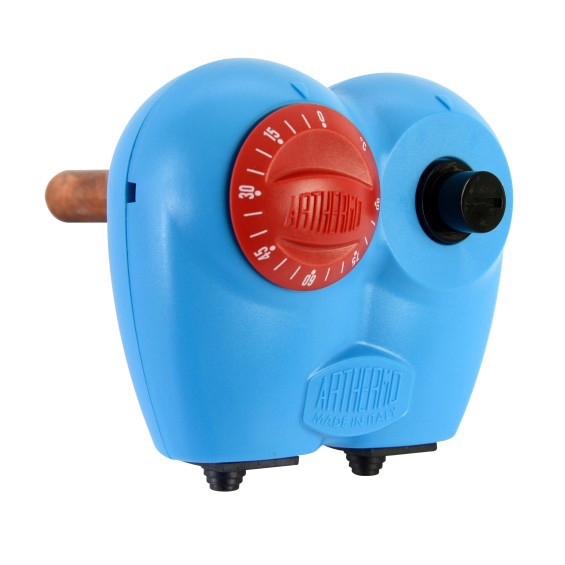

Boxed thermostats 'Arthermostat'
ARTH400
Double boxed thermostat, ARTHERMOSTAT line with brass pocket 1/2"C x 100 mm. Adjustable thermostat 0/90°C and safety thermostat 100°C.Particularly suitable for temperature control of water in heating system. Manual reset.
REGULATION THERMOSTAT SPECIFICATIONS
| Switching capacity |
C-1 15(2,5)A 400VAC |
| Life of products | 100.000 switching cycles |
| Range | 0/90°C |
| Insulation resistant | >100Mohm |
| Max °C around body | T110°C |
| Max °C around bulb | +15% F.S. |
| Dielectric strenght | AC2000V 1 min. |
| Connection | Faston 6,3 x 0,8 |
| European approvals | ENEC03 thermostat inside |
| Degree of protection | IP40 |
SAFETY THERMOSTAT SPECIFICATIONS
| Switching capacity |
C-1 1A 250VAC |
| Life of product | 6000 switching cycles |
| Safety | 100°C ± 5°C |
| Insulation resistance | >100Mohm |
| Max °C around body | T150°C |
| Max °C around bulb | T130°C |
| Dielectric strenght | AC2000V 1min. |
| Connection | Faston 6,3 x 0,8 |
| European approval | VDE thermostat inside |
| Degree of protection | IP40 |
