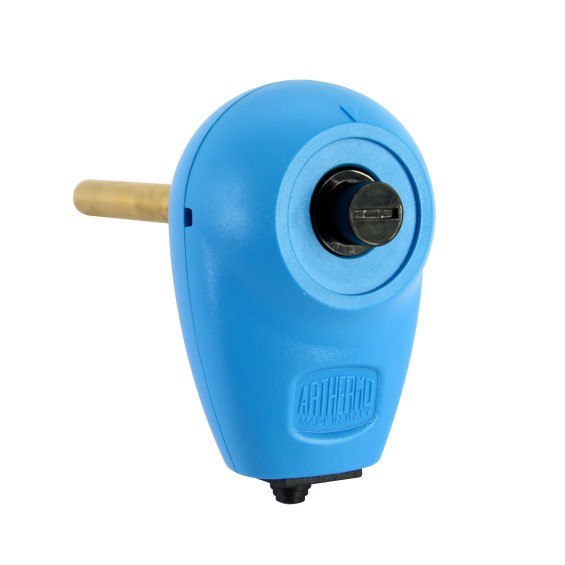

Boxed thermostats 'Arthermostat'
ARTH202
Arthermostat design. safety type, in ABS with brass pocket 1/2"G X 100 mm. Particularly suitable for temperature control of water in heating system. Manual reset.
THERMOSTAT TECHNICAL SPECIFICATION
| Switching value |
C-1 1A 250VAC |
| Life of product | 6000 switching value |
| Safety | 100°C ± 5°C |
| Insulation resistant | >100Mohm |
| Max °C around body | T150°C |
| Max °C around bulb | T130°C |
| Dielectric strenght | AC 2000V 1 min |
| Connection | 6,3 x 0,8 |
| European approvals | VDE thermostat inside |
| Degree of protection | IP40 |
