Multiline
MULTI405

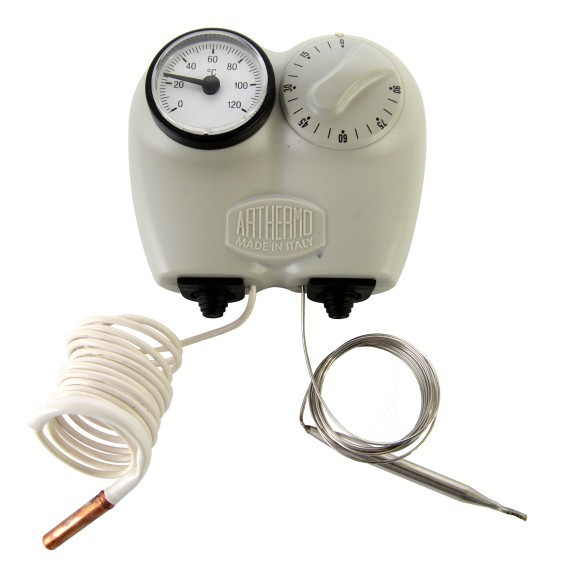

Boxed adjustable thermostat 0/90°C mm 1500 capillary, with control thermometer 0/120°C mm 1500 capillary.
THERMOSTAT TECHNICAL SPECIFICATIONS
| Switching capacity |
C-1 15(2,5)A 400VAC |
| Life of product | 100.000 switching cycles |
| Minimum current | 200mA without gold contact |
| Insulation resistant | >100Mohm |
| Max°C around body |
T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1 min. |
| Connection | Faston 6,3 x 0,8 |
| European approvals | ENEC 03 thermostat inside |
| Degree of protection | IP40 |
THERMOMETER TECHNICAL SPECIFICATIONS
| Range | 0/120°C |
| Dial | White dial black numbers |
| Resolution | 2°C |
| Accuracy | ± 2°C |
| Pointer | Black |
| Frame | Black |
| Calibration | 60°C ± 1°C |
| Control | 20-100°C ± 2°C |
| Approval | EN13190 |
| Degree of protection | IP40 |
