Multiline
MULTI404

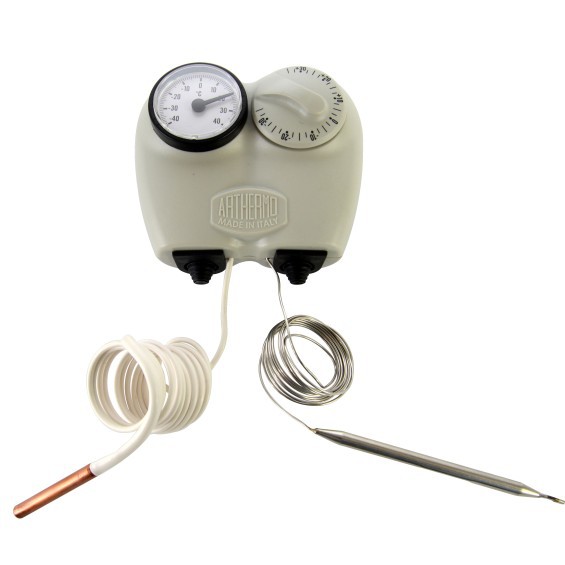

Boxed adjustable thermostat -35+35°C mm 1500 capillary, with control thermometer -40+40°C with capillary mm 1500.
THERMOSTAT TECHNICAL SPECIFICATIONS
| Switching capacity |
C-1 2,5(0,4)A 400 VAC |
| Life of product | 100.0000 switching cycles |
| Minimum current | 200mA without gold contact |
| Insulation resistant | >100 Mohm |
| Max °C around body | T110°C |
| Max °C around bulb | +15% switching value |
| Dielectric strenght | AC 2000V 1 min |
| Connection | Faston 6,3 x 0,8 |
| European approvals | Enec 03 thermostat inside |
| Degree of protection | IP40 |
THERMOMETER TECHNICAL SPECIFICATIONS
| Range | -40+40°C |
| Dial | White dial black numbers |
| Resolution | 2°C |
| Accuracy | ± 2°C |
| Pointer | Black |
| Frame | Black |
| Calibration | 0°C ± 1°C |
| Control | -20°C - +30°C ± 2°C |
| European approvals | En 13190 |
| Degree of protection | IP40 |
