Multiline
MULTI403

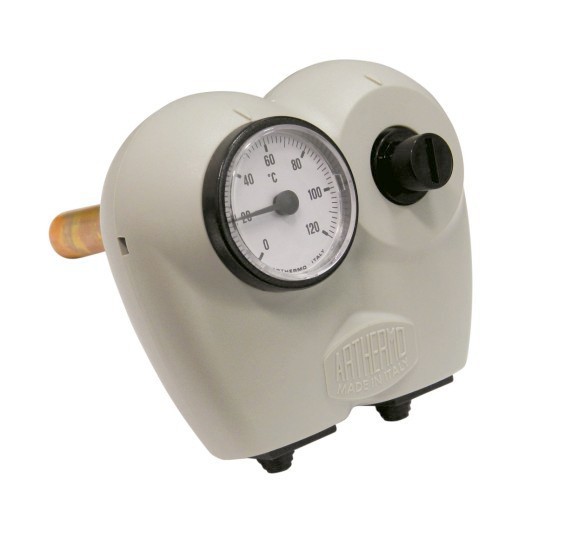

Immersion safety manual reset thermostat with control thermometer, liquid filled operating , SPDT contacts, with waterproff protection probe 1/2" x 100 mm.
THERMOSTAT TECHNICAL SPECIFICATIONS
| Switching capacity |
C-1 1A 250VAC |
| Life of product | 6000 switching cycles |
| Minimum current | 200 mA |
| Insulation resistant |
> 100 Moh |
| Max °C around body | T150°C |
| Max °C around bulb | T130°C |
| Dielectric strenght | AC 2000V 1 min |
| Connection | Faston 6,3 X 0,8 |
| European approvals | Thermostat inside VDE |
| Degree of protection | IP40 |
THERMOMETER TECHNICAL SPECIFICATIONS
| Range | 0/120°C |
| Dial | White dial black numbers |
| Resolution | 2°C |
| Accuracy | ± 2°C |
| Pointer | Black |
| Frame | Black |
| Calibration | 60°C ± 1°C |
| Control | 20-100°C ± 2°C |
| European directive | EN 13190 |
| Degree of protection | IP40 |
