Multiline
MULTI402

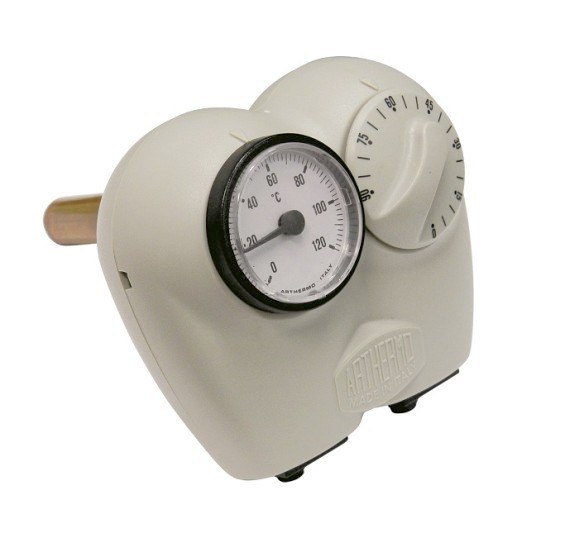

Immersion adjustable thermostat 0/90°C with control thermometer 0/120°C, liquid filled opearating. SPDT contacts with waterproof protection pocket 1/2" x 100 mm.
THERMOSTAT TECHNICAL SPECIFICATIONS
| Switching capacity |
C-1 15(2,5)A 400VAC |
| Life of product | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistance | >100 Mohm |
| Max °C around body | T 110°C |
| Max °C around bulb | +15% switching value |
| Dielectric strange | AC 2000V 1 min |
| Connection | Faston 6,3 x 0,8 |
| Europena approvals | Thermostat inside ENEC03 |
| Degree of protection | IP40 |
THERMOMETER TECHNICAL SPECIFICATIONS
| Range | 0/120°C |
| Dial | White dial black numbers |
| Resolution | 2°C |
| Accuracy | ± 2°C |
| Pointer | Black |
| Frame | Black |
| Calibration | 60°C ± 1°C |
| Control | 20 - 100°C ± 2°C |
| European approvals | EN 13190 |
| Degree protection | IP40 |
