Boxed thermostats 'Arthermostat'

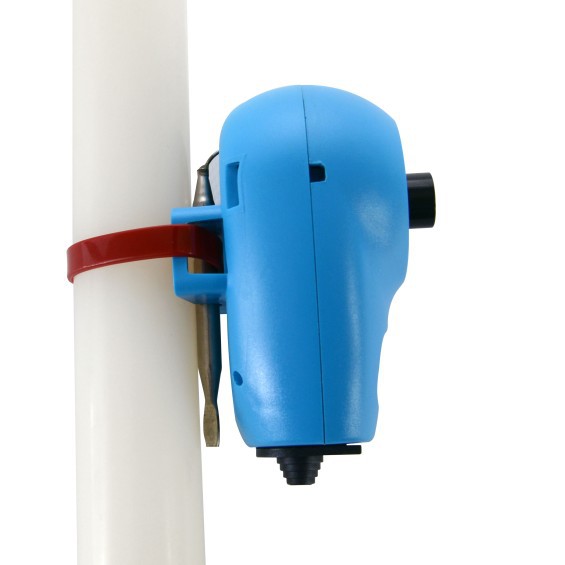

Arthermostat design. safety type, in ABS for pipe direct contact through heat-resistant band tie ( included ). Particularly suitable for temperature control of water in heating system. Manual reset.


Switching capacity

C-1 1A 250 VAC
C-2 16A 250 VAC

Safety   100°C ± 5°C
Product life   6.000 switching cycles
Minimum current   200 mA without gold contact
Insulation resistance   > 100 Mohm
Max temp.around case   T 150°C
Max temp. around bulb   +15% maximum switching value
Dielectric strength   AC 2000 V 1 min.
Connection   Faston 6,3x0,8 terminals
European approvals   VDE inside thermostat
Protection class   IP40
Click here to see the drawing
