Boxed thermostats 'Classic line'
TSC-096C

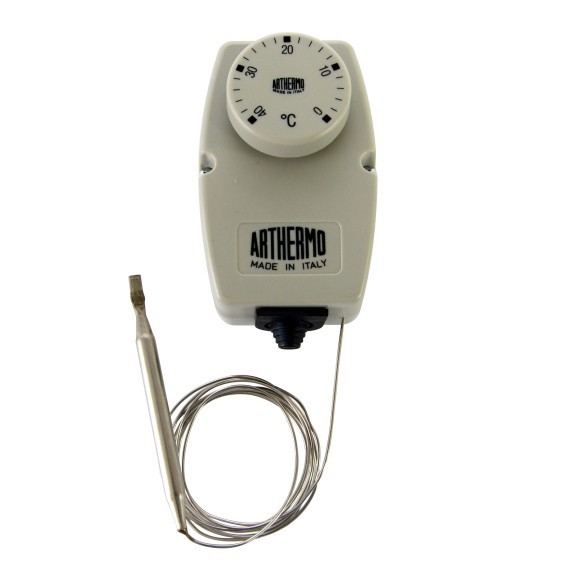

Encased adjustable thermostat 0/40°C with capillry mm 1500.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC |
| Temperature range | 0/40°C |
| Life of product | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistant | > 100M ohm |
| Max°C around body | T110°C |
| Max°C around bulb | +15% switching value |
| Dielectric strenght | AC2000V 1 min |
| Connection | Faston 6,3 x 0,8 |
| Approvals | ENEC03 thermostat inside |
| Degree of protection | IP40 |
