Boxed thermostats 'Arthermostat'
ARTH300

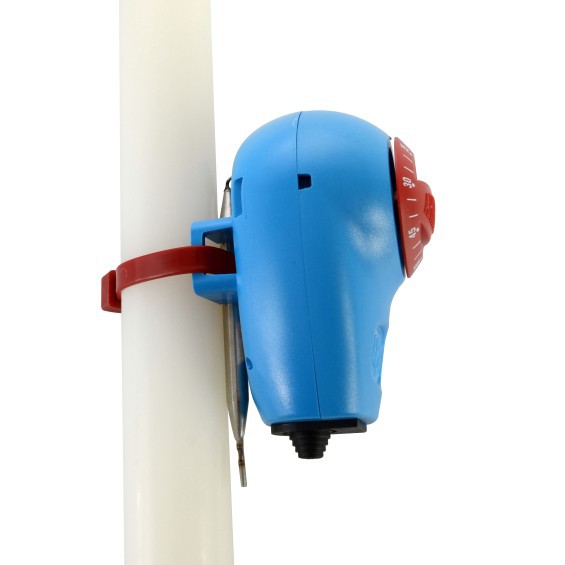

Boxed thermostat 0/90°C fitted with heat resistant band tie for fixing; particularly suitable for temperature control on heating systems.Projected for direct application on pipes with diameter between 15 and 80 mm. Fixing through a heat-resistant band tie in nylon, included in the box.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC |
| Differential | 4°C ± 2,5K |
| Product life | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistance | > 100 Mohm |
| Max temp.around case | T 110°C |
| Max temp.around bulb | + 15% maximum switching value |
| Dielectric strength | AC 2000 V 1 min. |
| Connection | Faston 6,3 x 0,8 mm terminals |
| European approval | ENEC 03 |
| Protection class | IP40 |
