Boxed thermostats 'Arthermostat'

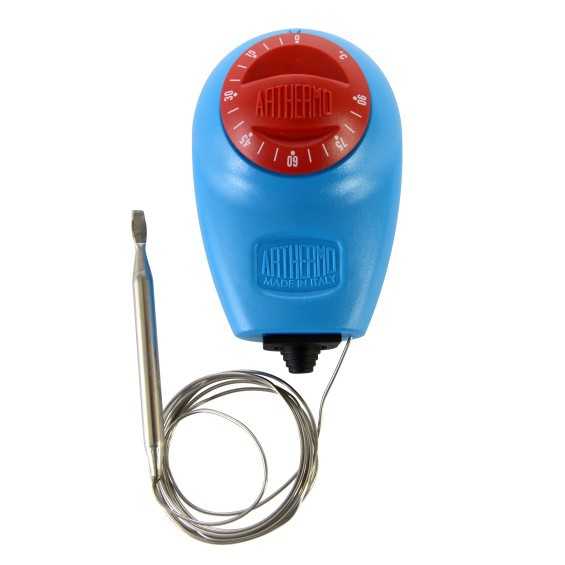

Boxed Thermostat 0/90°C capillary mm 1500, particularly suitable for temperature control on heating systems, circulation pumps, burners and heaters. Easy wall installation with only two screw dowels, included in the box


Switching capacity

C-1 15(2,5)A 400 VAC
C-2 2,5(0,4)A 400 VAC

Differential   4°C ± 2,5K
Product life   100.000 Switching cycles
Minimum current   200mA without gold contact
Insulation resistance   > 100 Mohm
Max temp.around case   T110°C
Max temp.around bulb   +15% maximum switching value
Dielectric strength   AC2000 V 1 min.
Connection   6,3x0,8 terminals
European approval   ENEC 03
Protection class   IP40
Click here to see the drawing
