Boxed thermostats 'Arthermostat'
ARTH096

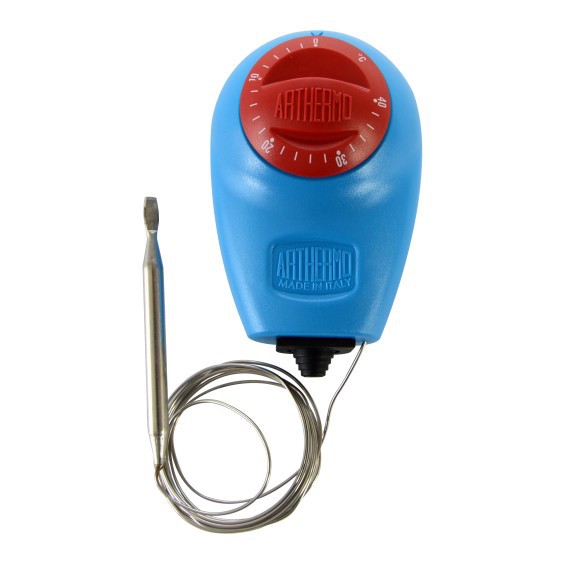

Encased thermostat 0/40°C with capillary mm 1500, particularly suitable for temperature control in air-conditioning. Easy wall installation with only two screw dowels, included in the box.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC |
| Differential | 4°C ± 2K |
| Product life | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistance | > 100 Mohm |
| Max temp.around case | T110°C |
| Max temp.around bulb | +15% maximum switching value |
| Dielectric strength | AC 2000V 1 min. |
| Connection | Faston 6,3x0,8 terminals |
| European approval | ENEC 03 |
| Protection class | IP40 |
