Boxed thermostats 'Arthermostat'
ARTH094

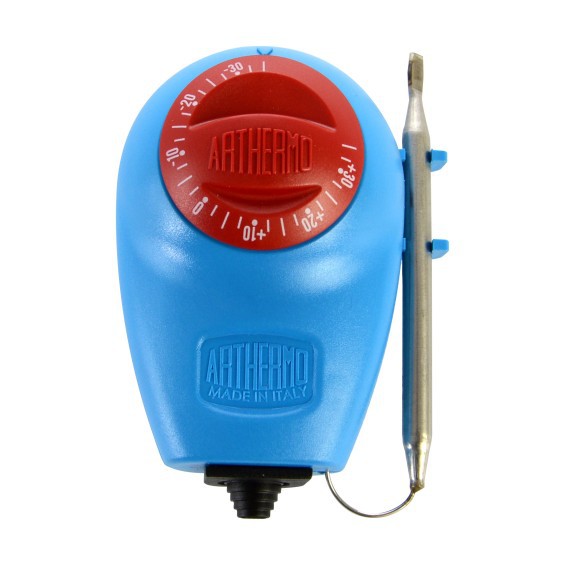

Boxed thermostat -35+35°C with side bulb, particularly suitable for temperature control in cold rooms and refrigeration in general. Easy wall installation with only two screw dowels, included in the box.
TECHNICAL DETAILS
| Switching capacity |
C-1 15(2,5)A 400 VAC |
| Differential | 3°C ± 2K |
| Product life | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistance | > 100 Mohm |
| Max.temp. around case | T110°C |
| Max.temp.around bulb | +15% maximum switching value |
| Dielectric strenht | AC 2000V 1 min. |
| Connection | Faston 6,3 x 0,8 terminals |
| European approvals | ENEC 03 |
| Protection class | IP 40 |
