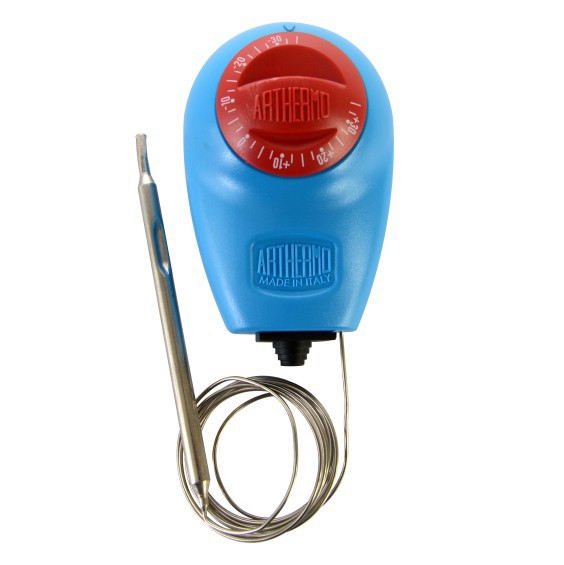

Boxed thermostats 'Arthermostat'
ARTH093
Boxed thermostat -35+35°C capillary mm 1500, particularly suitable for remote temperature control in cold rooms and in refrigeration sector in general.Easy wall installation with only two screw dowels, included in the box.
TECHNICAL DETAILS
| Switching capacity |
C-1 2,5(0,4)A 400 VAC |
| Differential | 3°C ± 2K |
| Product life | 100.000 switching cycles |
| Minimum current | 200 mA without gold contact |
| Insulation resistance | > 100 Mohm |
| Max.temp.around case | T110°C |
| Max.temp.around bulb |
+15% maximum switching value |
| Dielectric strength | AC 2000V 1 min. |
| Connection | Faston 6,3 x 0,8 |
| European approvals | ENEC 03 |
| Protection class | IP40 |
