C71 OVEN
C71 OVEN 0+500°C

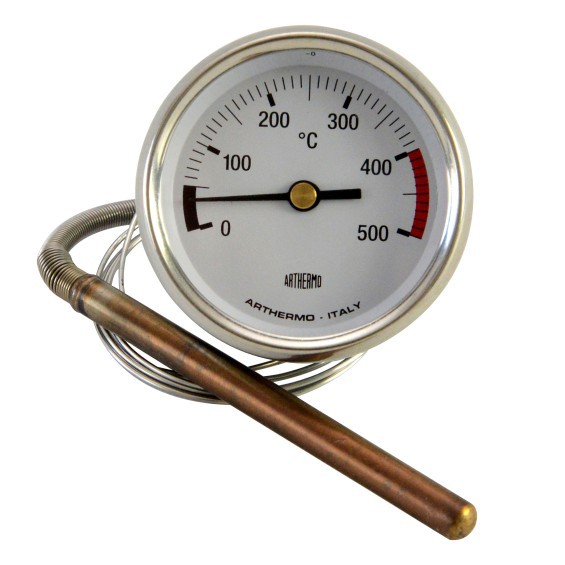

Capillary thermometer C 71, body Ø52/60 mm, zinc plated steel body, frame bright steel, capill. 1000 mm stainless steel, scale 0+500°C, white dial, black nmb., Arthermo logo, free bulb Ø8 mm
Optional:
* Different capillary lenghts
* Different colour for a dial
|
Max temperature tolerance casing |
80°C |
| Casing dimension | Ø52, Ø60 |
| Bulb in stainless steel | Ø 8 mm |
| Capillary in isteinless steel | 1000 mm |
| Case made in | white zinc plated steel |
| Frame | stainless steel |
| Fastening | bracket or front flange with 3 coupling holes |
| Temperature range | 0÷500 °C |
| Dial | white with black numbers |
