Fig. 569 resin

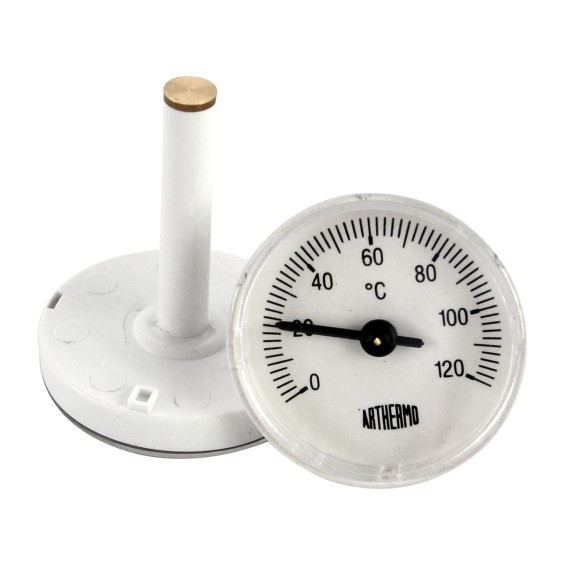

Fig. 569 Ø 50 Resin


Resin bimetallic thermometer Ø50 mm especially suitable for manifold,heating floor system and solar panel system.

  • Fixing spring
  • Pocket 1/2" / 3/8"
  • Nickeled pocket with o'ring
  • Different color of displays and/or number
  • Different temperature scale
Temperature range 0/60 - 0/80 - 0/120 - 0/160°C
Ø stem Ø 9 mm
Stem lenght 25 or 50 mm
Casing and shank material Shock resistent resin - polycarbonate
Frame Crohmed steel on request
Bimetal system Helicoidal spring
Max°C on case 80-130°C
Transparent Shock resistent resin - polycarbonate
Dial  White with black numbers

Click here to see the drawing
