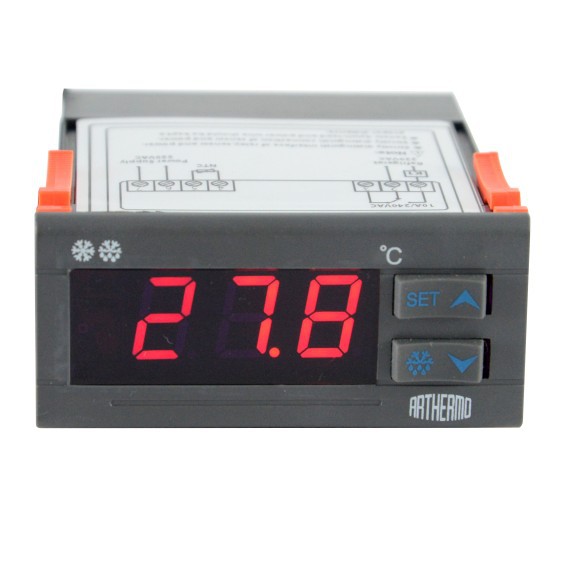

"CO" Digital thermostats
CO series
Digital thermometer CO series with high accuracy for the refrigeration and heating field.
TECHNICAL SPECIFICATIONS
| Panel size | 77 x 35 X 60 MM |
| Fixing hole size | 71 x 29 MM |
| Max °C on the case | 10+60°C |
| Relative umidity | 20%>85% |
| Power suppy | 230 VAC ± 10% 50/60 Hz |
| Power consumption | < 5W |
| Accuracy | 1°C |
| Model | Range | Output | Instruction |
| CO3/30A | -45+100°C | 1SPDT 30A 250VAC | |
| CO3D | -45+100°C | 2SPDT 10A 250VAC | |
| CO3DFA | -45+100°C | 3SPDT 10A 250VAC | |
| CO600 | 0+600°C | 1SPDT 10A 250VAC |
Legend:
CO3/30A - Temperature regulation - NTC probe mm 2000
CO3D - Tempearture, defrost regulation - NTC probe mm 2000
CO3SFA - Temparture, defrost , fan, alarm regulation - NTC probe mm 2000
CO600 - High Temparture regulation -K type probe mm 2000
