RT Type

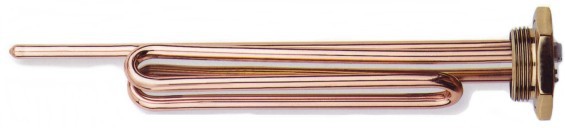

RT bended type
Characteristics:
- Heating element in Ø8 CU tube
- 1”1/4 gas brass cap
- Sealing with epoxy resins
- Repressed bend for a more homogeneous magnesium oxide density
- Standard: 230V
| Code RT | Power | L1 | L2 | L2 |
| RT115A | 1200 W | 220 mm | 170 mm | 135 mm |
| RT120A | 1500 W | 220 mm | 170 mm | 135 mm |
| RT140A | 1200 W | 280 mm | 170 mm | 135 mm |
| RT145A | 1500 W | 280 mm | 170 mm | 135 mm |
| RT150A | 2000 W | 280 mm | 170 mm | 135 mm |
| RT150A-400 | 2000 W | 280 mm | 220 mm | 180 mm |
| RT151A-400 | 2500 W | 280 mm | 220 mm | 180 mm |
| RT152A-300 | 3000 W | 280 mm | 170 mm | 135 mm |
| RT152A-400 | 3000 W | 280 mm | 220 mm | 180 mm |
On request:
- Lateral anod
- Central anod
