Fig. 536 radial
FIG. 536 RADIAL

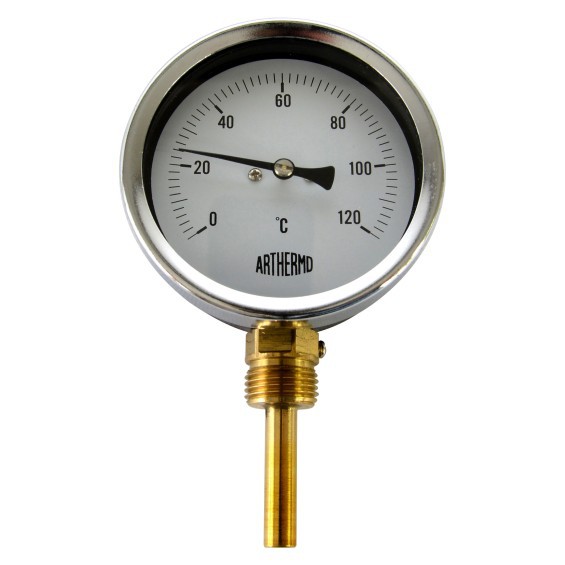

Bimetal thermometer , radial connection Fig.536 Ø60 - 80 - 100 black zinc steel case, crhomed frame, 0 /120°C , with pocket 1/2" mm 50 o mm 100.
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
| Max temperature case | 80°C |
| Stem diameter | Ø 9 with pocket 1/2" |
| Stem lenght | 50 - 100 MM |
| Range °C | 0+120°C |
| Case material | Black zinc steel |
| Frame material | Crhomed steel |
| Dial | White dial, black and logo "ARTHERMO" black. |
| Case diameter | Ø 60-80-100 mm |
