Boxed thermostats 'Arthermostat'

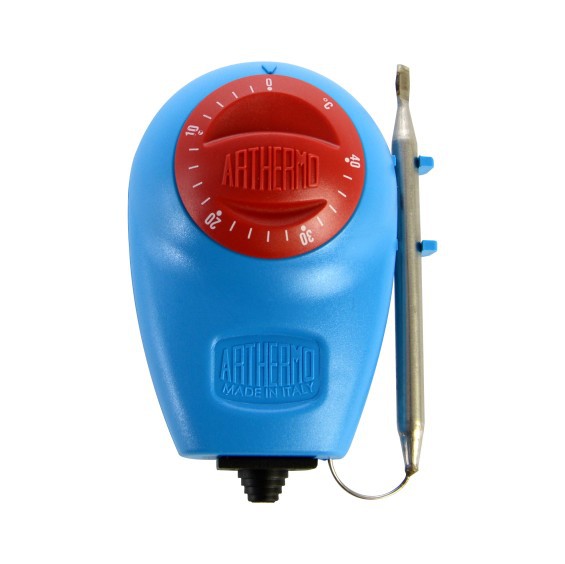

Boxed thermostat 0/40°C with side bulb, particularly suitable for temperature control in air-conditioning. Easy wall installation with only two screw dowels, included in the box.


Switching capacity

C-1 15(2,5)A 400 VAC
C-2 2,5(0,4)A 400 VAC

Differential   4°C ± 2K
Product life   100.000 switching cycles
Minimum current   200 mA without gold contact
Insulation resistance   > 100 Mohm
Max temp.around case   T110°C
Max temp.around bulb   +15% maximum switching value
Dielectric strenght   AC 2000V 1 min.
Connection   Faston 6,3 x 0,8 terminals
European approval   ENEC 03
Protection class   IP40
Click here to see the drawing
